  • 2125RH Full Mortise Hinge 2125RH Full Mortise Hinge

8" x 7 7/8" Right Hand Carbon Steel Full Mortise Hinges with 8000lbs Load Capacity

Product Overview Availability :  In Stock

  • 2125RH full mortise carbon steel hinge offer a reliable performance when used in heavy-duty vaults, gates, doors, etc.
  • They are offered in bolt-on or weld-on configurations with standard or custom mounting holes.
  • Fabricated using carbon steel materials base materials.

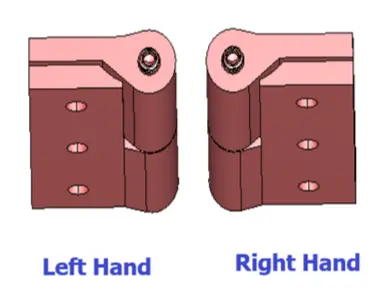

  • These 2125RH full mortise hinges are ideal for right-hand configuration.
  • They possess an exceptional load-bearing capacity and can handle loads up to 8,000lbs.
  • 2125RH full mortise carbon steel hinges offer easy installation and maintenance.
  • They can be customized with a lubrication port for smooth operation.
  • These hinges are supplied with a primer coat, hot-dipped galvanized zinc plated.
  • 2125RH full mortise hinges are suitable for industrial, commercial, medical and military applications.
  • They offer years of unfailing service.
  • Heat-treated and precision ground alloy steel pin ensures years of maintenance-free service.
  • Kiesler Machine Inc hinges are fabricated using a certified ASME Welding Procedure Specification (WPS).
  • Proudly Made in the USA.
CODE : 2125RH Full Mortise Hinge
PRICE : $ 1100


  • Application: Full Mortise
  • Type: Right-Handed
  • Material Type: Carbon Steel
  • Maximum Door Weight: 8000 LBS
  • Maximum Radial Load: 3300 LBS
  • Mount: Weld-On or Bolt-on
  • Approximate Width: 7 7/8"
  • Weight: 23 LBS
  • Height: 8"
  • Finish: Primer Coat
  • Service: Heavy Duty

Technical Information
